适用范围
密封腔压力：P≤0.6MPa
密封腔温度：t=-20℃～80(150)℃
线 速 度：Vg≤8m/s |
 |
■单端面
■非平衡型密封
■橡胶波纹管 |

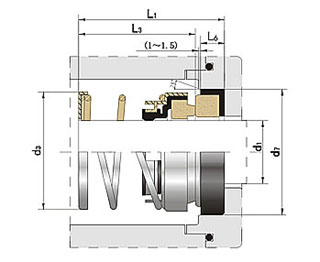

| 108 装配尺寸 (mm) |
规格\尺寸 |
d1
(h6) |
d3
(max) |
d7
(H8) |
L1
(±0.5) |
L3 |
L6 |
|
| 108-9 |
8 |
17.0 |
15 |
20.0 |
14.7 |
4.5 |
|
| 108-9 |
9 |
21.0 |
21 |
20.0 |
14.7 |
4.5 |
| 108-10 |
10 |
21.0 |
21 |
20.0 |
14.7 |
4.5 |
| 108-11 |
11 |
23.0 |
23 |
20.0 |
14.7 |
4.5 |
|
| 108-12 |
12 |
23.0 |
23 |
20.0 |
14.7 |
4.5 |
| 108-14 |
14 |
25.5 |
25 |
25.0 |
19.7 |
4.5 |
| 108-15 |
15 |
27.5 |
27 |
25.0 |
19.7 |
4.5 |
|
| 108-16 |
16 |
27.5 |
27 |
25.0 |
19.7 |
4.5 |
| 108-17 |
17 |
32.5 |
33 |
25.0 |
19.7 |
4.5 |
| 108-18 |
18 |
32.5 |
33 |
25.0 |
19.7 |
4.5 |
|
| 108-19 |
19 |
33.0 |
35 |
25.0 |
19.2 |
5.0 |
| 108-20 |
20 |
33.0 |
35 |
25.0 |
19.2 |
5.0 |
| 108-22 |
22 |
38.0 |
37 |
28.0 |
21.8 |
5.5 |
|
| 108-25 |
25 |
40.0 |
40 |
32.5 |
25.0 |
6.0 |
| 108-28 |
28 |
43.0 |
43 |
35.0 |
27.0 |
7.0 |
| 108-30 |
30 |
45.5 |
45 |
35.0 |
27.0 |
7.0 |
|
| 108-35 |
35 |
51.0 |
50 |
37.0 |
29.0 |
7.0 |
| 108-40 |
40 |
57.5 |
58 |
40.0 |
30.5 |
8.0 |
| 108-45 |
45 |
63.0 |
63 |
40.0 |
30.5 |
8.0 |
|
| 108-50 |
50 |
71.0 |
70 |
45.0 |
33.5 |
9.5 |
| 108-55 |
55 |
75.5 |
75 |
45.0 |
33.5 |
9.5 |
|
