适用范围
密封腔压力：P≤0～0.6MPa
密封腔温度：t=-40℃～150℃
转 速：n≤3000r/min
|
|
 |
■单端面
■单弹簧
■非平衡型密封
■符合DIN24960标准

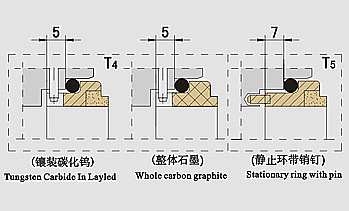

■静止环可选用T2、T4、T5结构
 |

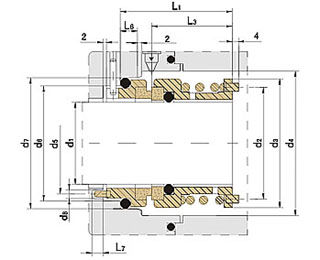

| 113 装配尺寸 (mm) |
规格\尺寸 |
d1
(h6) |
d2 |
d3
(max) |
d4
(min) |
d5 |
d6
(H11) |
d7
(H8) |
L1
(±0.5) |
L3
|
L6 |
L7 |
D8 |
|
113-20 |
20
|
27
|
34
|
36
|
25.0
|
29
|
35
|
|
23.0
|
5.0
|
6
|
4.0
|
|
|
25 |
32 |
39 |
41 |
30.0 |
34 |
40 |
35 |
24.5 |
5.0 |
6 |
4.0 |
|
30 |
37 |
44 |
46 |
35.0 |
39 |
45 |
39 |
27.5 |
5.0 |
6 |
4.0 |
113-35
|
35
|
42
|
49
|
51
|
40.0
|
44
|
50
|
39
|
27.5
|
5.0
|
6
|
4.0
|
|
|
40 |
48 |
56 |
60 |
46.0 |
51 |
58 |
44 |
31.0 |
6.0 |
8 |
5.0 |
|
45 |
53 |
61 |
65 |
51.0 |
56 |
63 |
44 |
31.0 |
6.0 |
8 |
5.0 |
113-50
|
50
|
58
|
66
|
70
|
56.5
|
62
|
70
|
49
|
35.0
|
6.0
|
8
|
5.0
|
|
113-55 |
55 |
63 |
71 |
75 |
61.5 |
67 |
75 |
49 |
35.0 |
6.0 |
8 |
5.0 |
|
|
