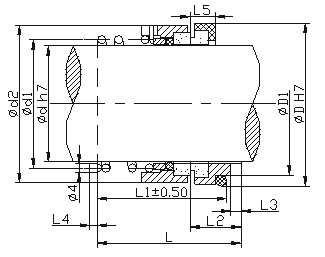

型号规格/尺寸 |
d |
d1 |
d2 |
D |
D1 |
L |
L1 |
L2 |
L3 |
L4 |
L5 |
120-18 |
18 |
21 |
32 |
33 |
27 |
43.0 |
36.0 |
19 |
5.0 |
3.5 |
7.5 |
120-20 |
20 |
23 |
34 |
35 |
29 |
43.5 |
36.5 |
19 |
5.0 |
3.5 |
7.5 |
120-25 |
25 |
28 |
39 |
40 |
34 |
47.0 |
40.0 |
19 |
5.0 |
3.5 |
7.5 |
120-28 |
28 |
31 |
42 |
43 |
37 |
47.0 |
40.0 |
19 |
5.0 |
3.5 |
7.5 |
120-30 |
30 |
33 |
44 |
45 |
39 |
50.0 |
43.0 |
19 |
5.0 |
3.5 |
7.5 |
120-35 |
35 |
36 |
49 |
50 |
44 |
53.0 |
46.0 |
19 |
5.0 |
3.5 |
7.5 |
120-40 |
40 |
44 |
57 |
58 |
51 |
57.0 |
50.0 |
20 |
5.0 |
3.5 |
9.0 |
120-45 |
45 |
50 |
62 |
63 |
56 |
61.0 |
54.0 |
20 |
5.0 |
3.5 |
9.0 |
120-50 |
50 |
55 |
69 |
70 |
62 |
62.0 |
55.0 |
22 |
6.5 |
3.5 |
9.5 |
120-55 |
55 |
60 |
74 |
75 |
67 |
64.0 |
57.0 |
22 |
6.5 |
3.5 |
11.0 |
120-60 |
60 |
65 |
79 |
80 |
72 |
65.0 |
58.0 |
22 |
6.5 |
4.0 |
11.5 |
120-65 |
65 |
71 |
84 |
85 |
77 |
67.0 |
60.0 |
23 |
6.5 |
4.0 |
11.5 |
120-70 |
70 |
76 |
91 |
92 |
83 |
70.0 |
63.0 |
25 |
6.5 |
4.0 |
11.5 |
120-75 |
75 |
80 |
97 |
97 |
88 |
72.0 |
65.0 |
25 |
6.5 |
5.5 |
11.5 |
120-80 |
80 |
87 |
104 |
105 |
95 |
72.0 |
65.0 |
25 |
6.5 |
5.5 |
12.0 |
|
|
|
|
