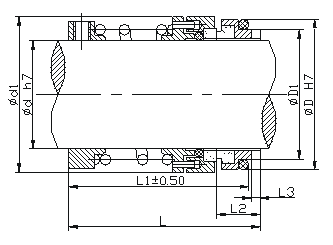

型号规格/尺寸 |
d |
d1 |
D |
D1 |
L |
L1 |
L2 |
L3 |
124-20 |
20 |
34 |
36 |
28.5 |
51.0 |
46.0 |
20 |
5 |
124-25 |
25 |
39 |
42 |
34.5 |
54.0 |
49.0 |
20 |
5 |
124-30 |
30 |
49 |
50 |
40.5 |
56.0 |
51.0 |
20 |
5 |
124-35 |
35 |
57 |
55 |
45.5 |
66.5 |
61.7 |
20 |
5 |
124-40 |
40 |
62 |
60 |
50.5 |
69.5 |
64.7 |
20 |
5 |
124-45 |
45 |
67 |
65 |
55.5 |
74.5 |
69.7 |
20 |
5 |
124-50 |
50 |
72 |
70 |
60.5 |
78.5 |
73.7 |
21 |
5 |
124-55 |
55 |
77 |
75 |
65.5 |
80.5 |
75.7 |
21 |
5 |
124-60 |
60 |
82 |
80 |
70.5 |
80.5 |
75.7 |
21 |
5 |
124-65 |
65 |
91 |
89 |
79.5 |
86.5 |
81.7 |
22 |
5 |
124-70 |
70 |
96 |
94 |
84.5 |
88.5 |
83.7 |
22 |
5 |
124-75 |
75 |
101 |
99 |
89.5 |
88.5 |
83.7 |
22 |
5 |
124-80 |
80 |
106 |
104 |
94.5 |
93.5 |
88.7 |
22 |
5 |
124-85 |
85 |
111 |
109 |
99.5 |
96.5 |
91.7 |
22 |
5 |
124-90 |
90 |
116 |
114 |
104.5 |
97.5 |
92.7 |
22 |
5 |
124-95 |
95 |
121 |
119 |
109.5 |
97.5 |
92.7 |
22 |
5 |
|
|
|
|
