结构特点：
内装、单端面、单弹簧、非平衡型、并圈弹簧传动.
应用范围:
温度 : -20~204 ℃
压力 : ≤1Mpa
线速度 : 3000r/min
介质 :油类、水和一般腐蚀性液体

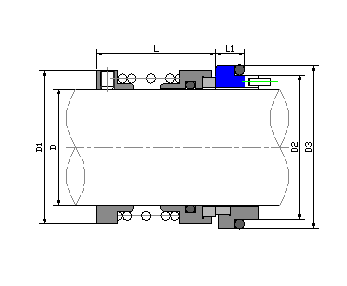

型号MODEL |
D |
D1 |
D2 |
D3 |
L |
L1 |
| 1527-30 |
30 |
44 |
39 |
45 |
40 |
10 |
1527-35 |
35 |
49 |
44 |
50 |
45 |
10 |
1527-40 |
40 |
56 |
51 |
58 |
45 |
10 |
1527-45 |
45 |
61 |
56 |
63 |
49 |
11 |
1527-50 |
50 |
66 |
62 |
70 |
49 |
11 |
1527-55 |
55 |
71 |
67 |
75 |
57 |
13 |
1527-60 |
60 |
80 |
72 |
80 |
57 |
13 |
1527-65 |
65 |
85 |
77 |
85 |
57 |
13 |
1527-70 |
70 |
90 |
83 |
92 |
64.7 |
15.3 |
1527-75 |
75 |
99 |
88 |
97 |
64.7 |
15.3 |
1527-80 |
80 |
104 |
95 |
105 |
74.3 |
15.7 |
1527-85 |
85 |
109 |
100 |
110 |
74.3 |
15.7 |
| 1527-90 |
90 |
114 |
105 |
115 |
74.3 |
15.7 |
| 1527-95 |
95 |
119 |
110 |
120 |
74.3 |
15.7 |
| 1527-100 |
100 |
124 |
115 |
125 |
74.3 |
15.7 |
|
|
|
|
